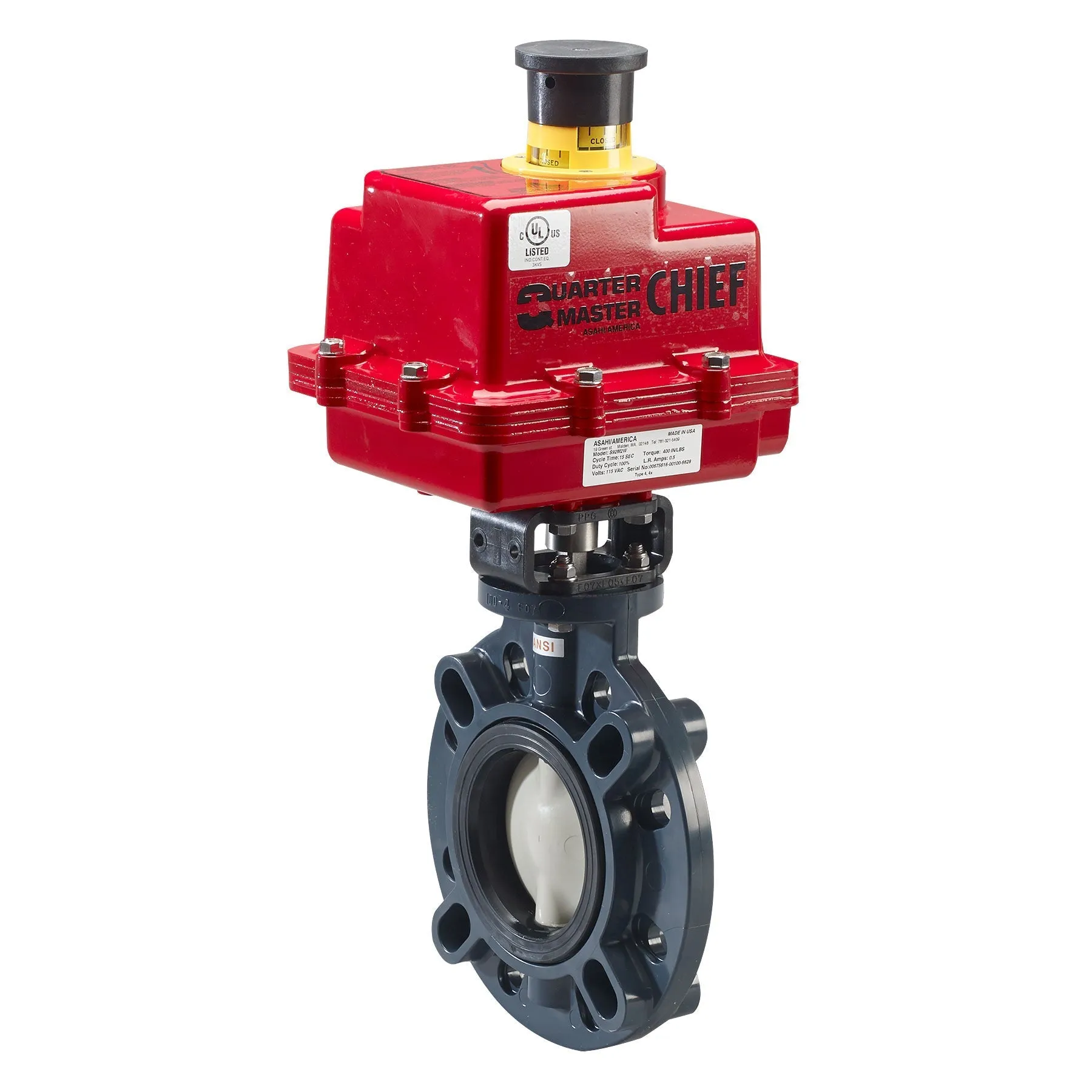

Electric Series 92 on Type-57P Butterfly Valve

The Series 92 electric actuator is suitable for butterfly valves up to 8 in. in size (The series-10 covers sizes larger than this).

Ideal Applications Include:

Locations with no air supply or colder temperatures

Features & Benefits:

• Motor: Reversing, brushless, capacitor run 115 VAC 50/60 Hz, single phase

• Overload Protection: Integral thermal overload protection for motor winding with automatic reset

• Gear Train: Permanently lubricated, solid gear that is Rockwell hardened

• Corrosion Resistant Housing: thermally-bonded baked powder coating with stainless steel trim

• ISO mounting configuration

• Conduit: Two 1/2 in. NPT conduit entries to eliminate cross feed between control, feedback, and power signals

• Position Indication: Highly visible beacon position indicator for positive indication of valve position, even at a distance

• Declutchable Manual Override: Pull up on indicator knob, insert 5/8 in. wrench onto flats and rotate in the appropriate direction (CCW for open, CW for closed). Models with handwheel override do not require a wrench. Simply push down on handwheel until engaged with cam and rotate.

• Limit Switches: Standard End of travel limit switches can be used for light indication (not to be used with PLC for position confirmation)

• Enclosure: Combination Type 4X, 7, and 9 enclosure for use in various environments.

• Corrosion Resistant Mounting: Mounting is with PPG or stainless steel bracket, stainless steel coupling, and stainless steel hardware

• CE Compliant Motor: All 115 VAC and 230 VAC motors are CE compliant and stamped as such

• Extended Duty Cycles: Our extended duty cycles are ideal for modulating and high cycling applications

• Output Torque: Series 92 electric actuators have an output torque range from 400 in/lbs to 2,000 in/lbs

• RoHS Compliant


Note: Actuated and Flanged connection valves are Special Order / Non-Cancellable / Non-Returnable with a 3-4 week average lead time.

Asahi Part Numbers: 2910015, 2910020, 2910025, 2910030, 2910040, 2910060
